Datalogic GD4590 1D 2D Handheld Barcode Scanner QR Code Reader GD4590-HD

1D,2D, Post, DPM, Composites, IP52, Black and White optional, USB,RS232.



Model No: GD4590/GD4520

Image Sensor:1280 x 800 pixels

Resolution:  ≥3mil

Interface: RS-232, USB




Product Detail

PARAMETERS

Product Tags

Features

Use a premium handheld scanner for all your value-added applications

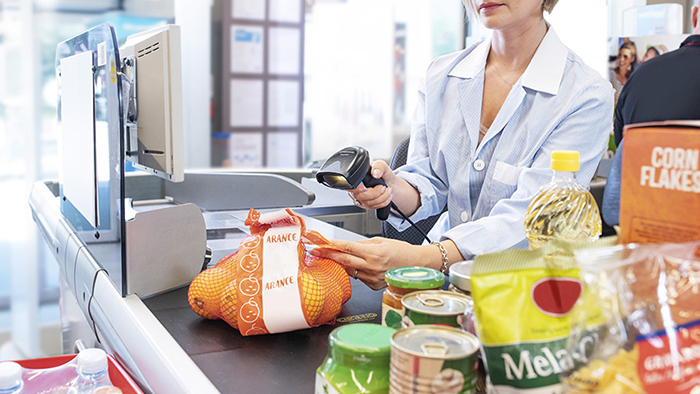

The Gryphon 4500 imager is an extremely powerful and beautifully designed handheld scanner that perfectly fits your grip. Its balanced, ergonomic shape reduces operator fatigue ensuring he/she continues to use it throughout the day effortlessly. Housed in the body is a rich feature set and high-performance megapixel sensor for outstanding reading results. Even during operation, the distinctive warm white illumination and use of Motionix motion sensing technology make this a very intuitive and easy to use scanner. What’s more is that the scanner is available in both wired and wireless versions. The wireless version offers battery inductive charging without the need for physical contacts. An easier to use, lower maintenance version of an already highly desirable scanner. Used in retail, healthcare, manufacturing, and commercial services. The Gryphon 4500 imager is power in your hands

Datalogic GD4590 1d 2d Handheld Barcode Scanner QR Code Reader



Drive productivity with enhanced capabilities
The Gryphon 4500 imager comes with a megapixel sensor which provides ultimate reading performance on any code types, all with a greater Depth of Field and Field of View. As it’s a premium scanner, it can capture images with high quality and clarity to suit all your needs. The warm white illumination is not only easier on human eyes but helps to better read a greater range of barcodes on colored labels. This is especially useful when combined with optional high-density optics to enable the reading codes from LCD monitors, cell phones, smartphones and other mobile devices.

You can further simplify the operator’ activities by making use of the adjustable multi-position cradle. This provides the flexibility of using the imager in presentation mode to read the codes without the need to pick it up, all while it’s charging.

Datalogic GD4590 1d 2d Handheld Barcode Scanner QR Code Reader



Improve your aim in any environment

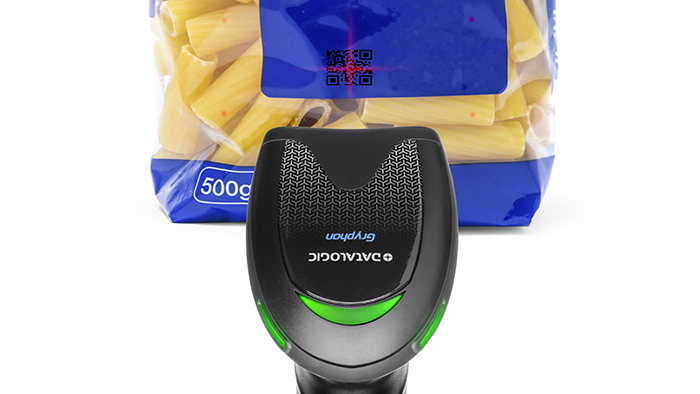

The Gryphon 4500 imager comes with a unique 4-dot aiming pattern with a center cross. This clearly defines the reading zone of your scanner and guarantees a perfect aim with every scan. When you have the tricky job of selecting a single barcode from multiple items, all you have to do is press the trigger. The highly visible red center cross is easy to aim at almost any surface and in any environment. As with all Datalogic scanners, the patented Green Spot technology provides instantaneous good-read feedback directly on the code just read. The Gryphon 4500 imager is truly versatile, capable of reading 1D, 2D, Postal, Stacked, Digimarc, and Dotcodes – all in one nice and easy to use device. Datalogic GD4590 1d 2d Handheld Barcode Scanner QR Code Reader

Application

♦ Warehousing

♦ Retail, store

♦ Hospital & pharmacies

♦ Transportation

♦ Inventory and asset tracking

♦ Medical care

♦ Government enterprises

♦ Industrial fields


  • Previous:
  • Next:

  • DECODING CAPABILITY
    1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
    2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
    Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
    Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
    Digital Watermarking Digimarc Barcodes
    ELECTRICAL
    Current Operating: <400 mA @ 5V; < 400 mA @ 12V Standby/ldle: < 90 mA @ 5V; <50 mA @ 12V
    Input Voltage GD4520: 5 VDC GD4590: 4.5 - 1G0 VDC
    ENVIRONMENTAL
    Ambient Light 0- 100,000 lux
    Drop Resistance Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
    ESD Protection (Air Discharge) 16 kV
    Humidity (Non-Condensing) 0-95%
    Particulate and Water Sealing IP52
    Temperature Operating: 0 to 50 °C /32to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F
    INTERFACES
    Interfaces GD4520: USB only GD4590: RS-232 / USB / Keyboard Wedge MultiInterface
    PHYSICAL CHARACTERISTICS
    Colors Available Black; White
    Dimensions 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in In Stand: 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in
    Weight 161.0 g/5.7 oz In Stand: 374 g / 13.2 oz
    READING PERFORMANCE
    Image Capture Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
    Image Sensor 1 Megapixel: 1280 x 800 pixels
    Light Source Aiming: Red Laser 650 nm Illumination: Warm White; Hyper Red LED for Digimarc
    Motion Tolerance 35 IPS
    Print Contrast Ratio (Minimum) 15%
    Reading Angle Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
    Reading Indicators Beeper (Adjustable Tone); Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic *Green Spot’ on the Code, Dual Good Read LEDs
    Resolution (Maximum) High Density (HD): 1D Linear: 0.077 mm / 3 mils; PDF幻7: 0.077 mm/3 mils; Data Matrix: 0.102 mm / 4 mils Standard Range (SR): 1D Linear: 0.102 mm / 4 mils; PDF417: 0.127 mm/5 mils; Data Matrix: 0.195 mm / 7.5 mils
    READING RANGES
    Typical Depth of Field Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
    GD4500 Standard Range (SR) Code 39: 5mils: 7.0to 38.0cm/2.7to 14.9in
    Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in
    Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 in
    Data Matrix: 15 mils: 2.8 to 41.0cm/1.1 to 16.1 in
    EAN/UPC: 13 mils: 1.0 to71.0 cm/0.4 to 27.9 in
    PDF417: 10 mils: 2.5 to 41.0 cm/1.0 to 16.1 in
    QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in
    GD4500 High Density (HD) Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in
    Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
    Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in
    Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in
    EAN/UPC: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in
    EAN/UPC: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in
    PDF417: 4mils: 3.0 to 12.0cm/1.2to47 in
    PDF417: 10 mils: 0.5 to 31.0 cm/ 0.2 to 12.2 in
    QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
