Datalogic Gryphon GPS4400 Desktop Barcode Scanner for Retail Pharmacies Hospital

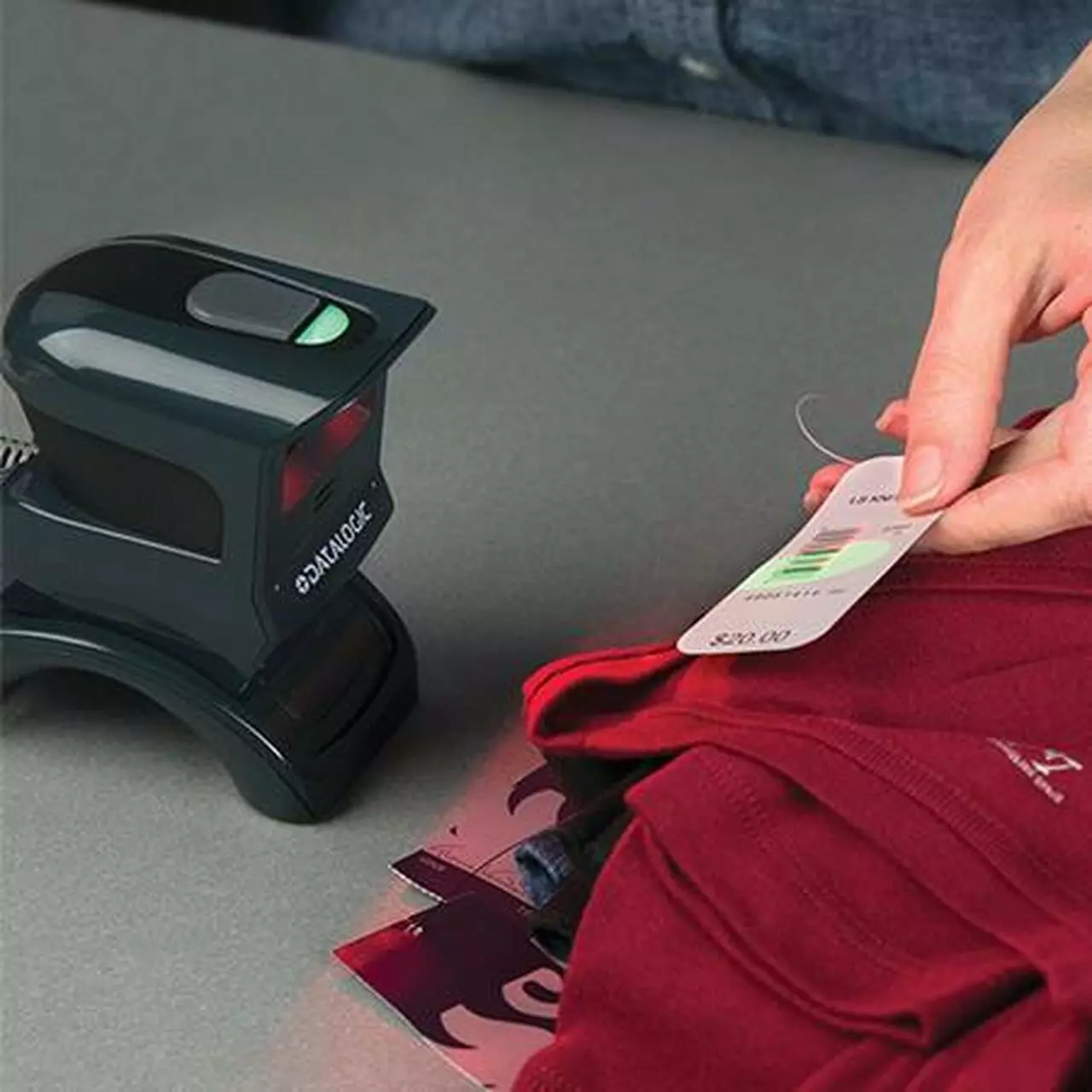

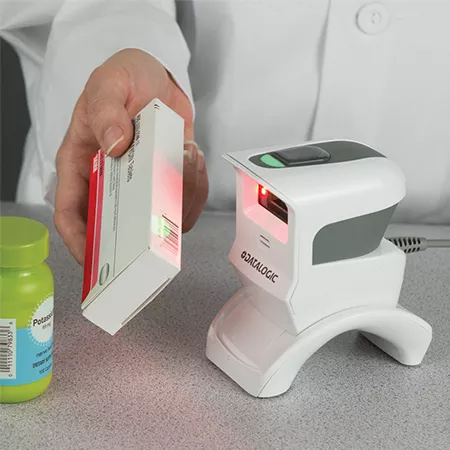

The Gryphon I GPS4400 will impress you with more than its design. The flexible presentation scanner additionally offers above-average performance when capturing 1D and 2D codes including postal and stacked codes, even from displays. The latter makes the GPS4400 the ideal helper for capturing discount and special offer codes, as well as customer cards, directly from a smartphone. It is also perfect for usage at the POS in pharmacies, retail, as well as the hospitality reception area.
The housing sits on top of a flexible stand, and thus offers the optimal alignment for the simple and intuitive capture of barcodes. The proven scan engine, with the patented »Green Spot« good scan confirmation, features excellent scanning properties at close range, a wide scanning width and exceptional motion tolerance. The USB Plug and Play port ensure smooth integration. Configure the barcode scanner in the classical fashion via the manual or via practical utilities from Datalogic. A 3-year manufacturer's warranty secures your investment and speaks for the longevity of the product.
♦ Warehousing
♦ Retail, store
♦ Hospital & pharmacies
♦ Transportation
♦ Inventory and asset tracking
♦ Medical care
♦ Government enterprises
♦ Industrial fields
| DECODING CAPABILITY | |
| ID / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code； China Han Xin Code； Data Matrix： MaxiCode； Micro QR Code； QR Code |
| Postal Codes | Australian Post； British Post； Canadian Post； China Post； IMB； Japanese Post； KIX Post； Planet Code； Portuguese Post； Postnet： Royal Mail Code (RM4SCC)； Swedish Post |
| Stacked Codes | EAN/JAN Composites： GS1 DataBar Composites； GS1 DataBar Expanded Stacked； GS1 DataBar Stacked； GS1 DataBar Stacked Omnidirectional； MacroPDF； MicroPDF417； PDF417； UPC A/E Composites |
| ELECTRICAL | |
| Current | Operating (Typical)： 175 mA； Max： 200 mA Standby/ldle (Typical)： Automatic/Object Sense Modes： 105 mA Trigger/Serial On Line Modes： 55 mA |
| Input Voltage | 5 VDC (+/- 5%) |
| ENVIRONMENTAL | |
| Ambient Light | Oto 100,000 lux |
| Drop Resistance | Withstands repeated drops from 1.2 m / 4 ft onto a concrete surface |
| ESD Protection (Air Discharge) | 16 kV |
| Humidity (Non-Condensing) | 90% |
| Particulate and Water Sealing | IP52 |
| Temperature | Operating： 0 to 50 °C / 32 to 122 °F Storage/Transport： -40 to 70 °C /-40 to 158 °F |
| INTERFACES | USB,RS232 |
| READING PERFORMANCE | |
| Field of View | Horizontal x Vertical： 40° H x 26° V |
| Image Capture | 752 x 480 pixels Graphic Formats： BMP, JPEG, TIFF Greyscale： 256,16, 2 |
| Light Source | Aiming： 650nmVLD Illumination： 625 nm LED |
| Print Contrast Ratio (Minimum) | 25% |
| Reading Angle | Pitch： +/- 40°; Roll (Tilt)： +/- 180°； Skew (Yaw)： +/- 40° |
| Reading Indicators | Beeper (Adjustable Tone and Volume)； Datalogic ‘Green Spot’ Good Read Feedback： Good Read LED |
| Resolution (Maximum) | ID / Linear Codes： 0.102 mm /U mils Data Matrix： 0.178 mm / 7 mils |
| READING RANGES | |
| Typical Depth of Field | Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39:5 mils： 2.6 to 18.8 cm / 1 to 7.4 in Code 39： 10 mils： 0to 37.9cm/Oto 14.9in Data Matrix： 10 mils： 2.3 to 14.5 cm /0.9 to 5.7 in Data Matrix： 15 mils： 0 to 23.2 cm/Oto 9.1 in EAN： 13 mils： 0.8 to 42.2 cm / 0.3 to 16.6 in PDF417： 10 mils： 0 to 22.4 cm / 0 to 8.8 in QR Code： 10 mils： 2.3 to 14.3 cm / 0.9 to 5.6 in |
| SAFETY & REGULATORY | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
