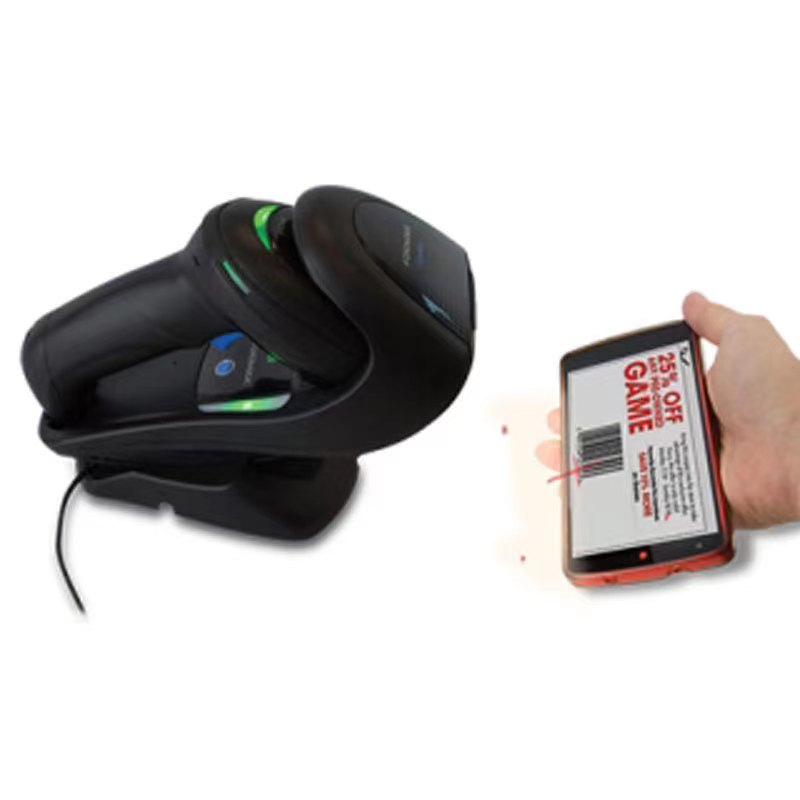

Datalogic Handheld Barcode Scanner GBT4500-BK with Base
The Gryphon 4500 imager is an extremely powerful and beautifully designed handheld scanner that perfectly fits your grip. Its balanced, ergonomic shape reduces operator fatigue ensuring he/she continues to use it throughout the day effortlessly. Housed in the body is a rich feature set and high-performance megapixel sensor for outstanding reading results. Even during operation, the distinctive warm white illumination and use of Motionix motion sensing technology make this a very intuitive and easy to use scanner. What’s more is that the scanner is available in both wired and wireless versions. The wireless version offers battery inductive charging without the need for physical contacts. An easier to use, lower maintenance version of an already highly desirable scanner. Used in retail, healthcare, manufacturing, and commercial services. The Gryphon 4500 imager is power in your hands.
Drive productivity with enhanced capabilities
The Gryphon 4500 imager comes with a megapixel sensor which provides ultimate reading performance on any code types, all with a greater Depth of Field and Field of View. As it’s a premium scanner, it can capture images with high quality and clarity to suit all your needs. The warm white illumination is not only easier on human eyes but helps to better read a greater range of barcodes on colored labels. This is especially useful when combined with optional high-density optics to enable the reading codes from LCD monitors, cell phones, smartphones and other mobile devices. You can further simplify the operator’ activities by making use of the adjustable multi-position cradle. This provides the flexibility of using the imager in presentation mode to read the codes without the need to pick it up, all while it’s charging.
♦ Warehousing
♦ Transportation
♦ Inventory and asset tracking
♦ Medical care
♦ Government enterprises
♦ Industrial fields
Skew Tolerance | ±65° |
Pitch Tolerance | ±65° |
Roll Tolerance | ±45° |
Scan Pattern | Single bright aiming line |
Scan Angle | Horizontal 35° |
Scan Speed | 547 scans per second |
Motion Tolerance | 25 in./ 63.5 cm per second |
Light Source | LED Class 1 device 617nm (amber) |
Min. Print Contrast | 15% MRD |
Scans Per Charge | Up to 57,000 |
Hours of Operation | Per full charge: 72 hours |
Utilities | 123Scan, Remote Scanner Management (RSM), Scanner Management Services (SMA), Zebra Scanner SDK |
Radio | Bluetooth v2.1 Class 2 Radio |
Data Rate | 3.0 Mbit/s (2.1 Mbit/s) Bluetooth v2.1 |
Radio Range* | 330 ft./100 m (line of sight) |
*Using presentation cradle configuration | |
Dimensions | 3.84 in. H x 2.75 in. W x 7.34 in. L |
9.8 cm H x 7 cm W x 18.6 cm L | |
Weight | 7.9 oz./224 grams |
Cradle Interface | RS232, RS485 (IBM), USB, Keyboard Wedge |
Color | Black; White |
Battery | Rechargeable replaceable battery with ‘green sustainability’ |
Ambient Light Immunity | Max 108,000 lux |
Operating Temp. | 32° F to 122° F/ 0° C to 50°C |
Storage Temperature | -40° F to 158° F/-40° C to 70° C |
Humidity | 5% to 85% RH, non-condensing |
Drop Specification | Over 100 drops at 5 ft./1.5 m at room temperature; |
survives 6ft./1.8 m drops to concrete | |
Environmental Sealing | IP53; Gasket sealed housing withstands dust and can be sprayed clean |
Bar Code Symbologies | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW – 7) Chinese 2 of 5 IATA Inverse 1-D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded |
