Datalogic QW2100 QW2400 QW2420 QW2470 Handheld Barcode Scanner with Stand
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

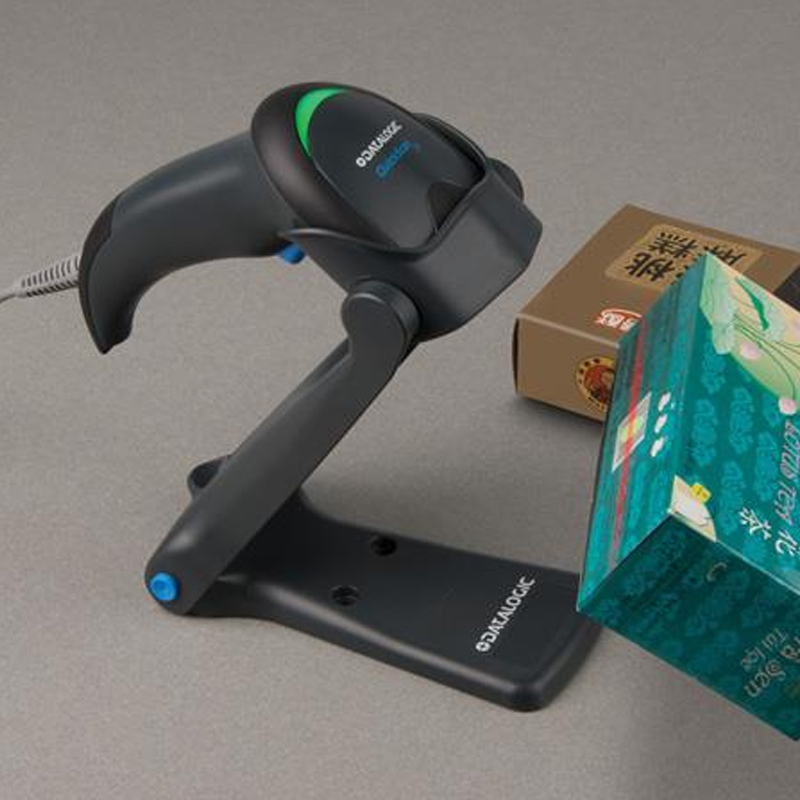

A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a ‘tiltable head’ for various angle settings.
The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
♦ Wide scan angle
♦ Laser-like thinner and extended scan line
♦ Datalogic’s patented ‘Green Spot’ technology for good-read feedback
♦ Water and Particulate Sealing Rating: IP42
♦ Drop Resistance to 1.5 m / 5.0 ft
♦ Uses the same cables and power supplies as the current QuickScan products
♦ Bulk packaging available (10 scanners per box)
♦ USB Certified Kits available
♦ Warehousing
♦ Transportation
♦ Inventory and asset tracking
♦ Medical care
♦ Government enterprises
♦ Industrial fields
| item | QW2100 |
| Certification | ce |
| Private Mold | No |
| Type | Barcode Scanner |
| Scan Element Type | CMOS |
| Colour Depth | 32 Bit |
| Interface Type | usb, RS232 |
| Max Paper Size | other |
| Optical Resolution | 4 mil |
| Scan Speed | other |
| Brand Name | Datalogic |
| Warranty(Year) | 1-Year |
| After-sales Service | Others, Call Center and on-line Technical Support |
| Weight | 120.0 g / 4.2 oz |
| Dimensions | 7.1 x 17.1 x 6.6 cm / 2.8 x 6.7 x 2.6 in |
| IMAGER SENSOR | Field of View: 48 x 37掳 (H x V) |
| LIGHT SOURCE | Illumination: White LED 350 – 770 nm |
| MOTION TOLERANCE | 20 IPS |
| PRINT CONTRAST RATIO (MINIMUM) | 20% |
| AMBIENT LIGHT | Up to 92,000 lux |
| PARTICULATE AND WATER SEALING | IP42 |
